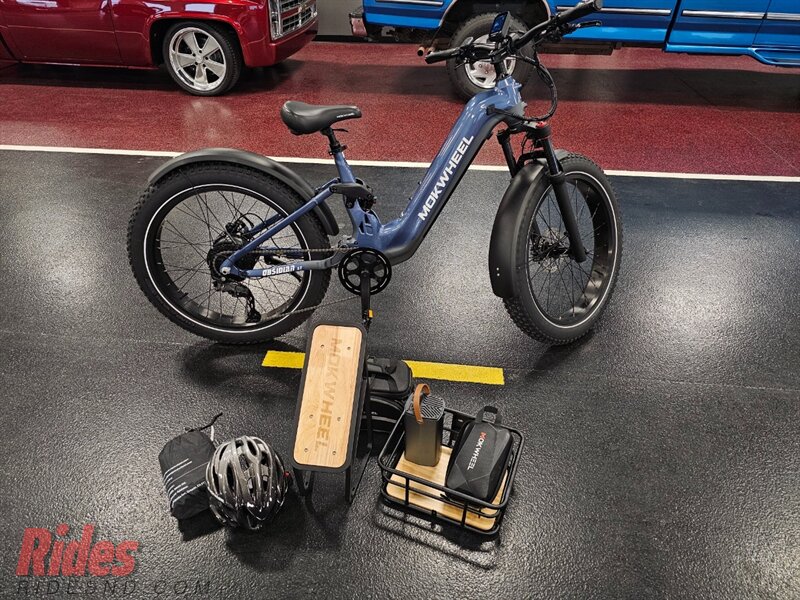

Mokwheel Obsidian ST 2.0

Advanced Engineering for All-Terrain Performance

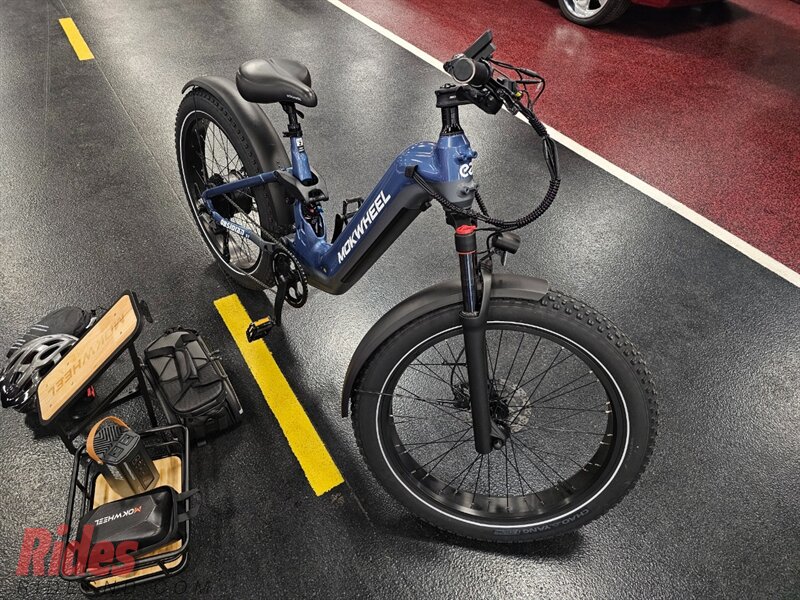

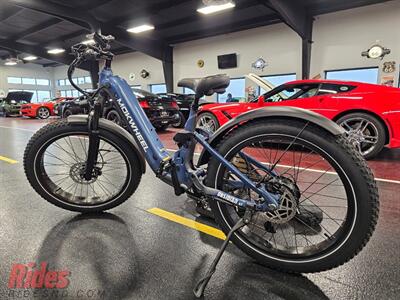

The Mokwheel Obsidian 2.0 is a premium full-suspension fat-tire e-bike engineered for riders who demand top-tier performance, range, and durability. Designed around Mokwheel’s latest high-output powertrain, the Obsidian 2.0 combines cutting-edge motor technology, intelligent battery management, and rugged frame construction to deliver a refined, high-torque riding experience on and off the road.

Power & Motor System

At the heart of the Obsidian 2.0 is a 48V 1300W peak brushless rear hub motor delivering 105 Nm of torque for instant throttle response and superior hill-climbing capability. The intelligent controller provides smooth power delivery through multiple pedal-assist levels and throttle control, allowing riders to fine-tune performance for efficiency or maximum output.

Battery & Range

With A 48V 19.6Ah Samsung/LG Lithium Battery you can

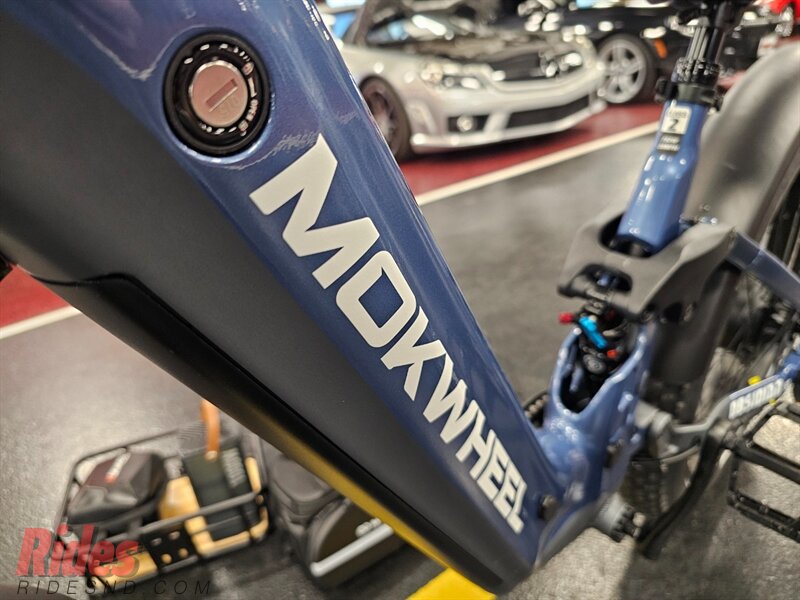

enjoy up to 80+ miles of range per charge, depending on terrain and riding mode. powers the system, offering up to 80 miles of range on a single charge. The integrated battery design improves aerodynamics, protects against debris and moisture, and can be fully removed for convenient charging. A smart Battery Management System (BMS) ensures optimal cell balancing and long-term reliability.


Drivetrain & Braking

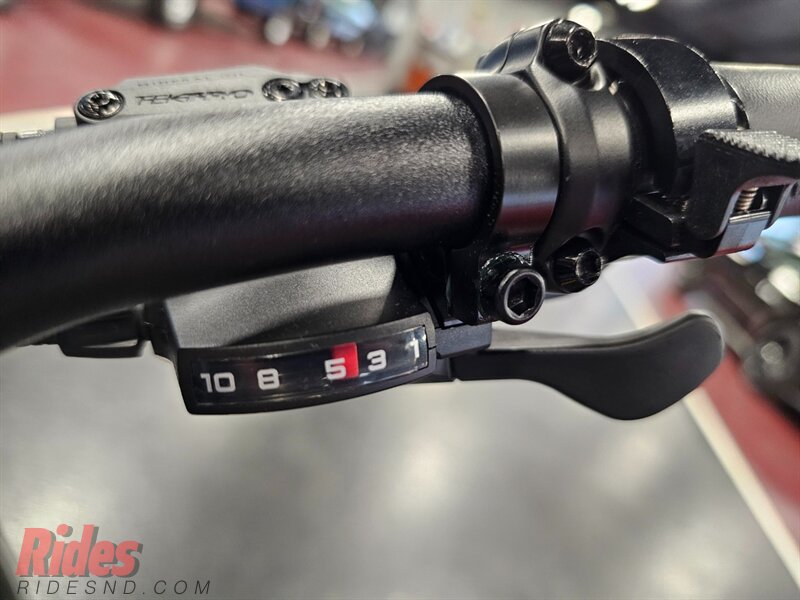

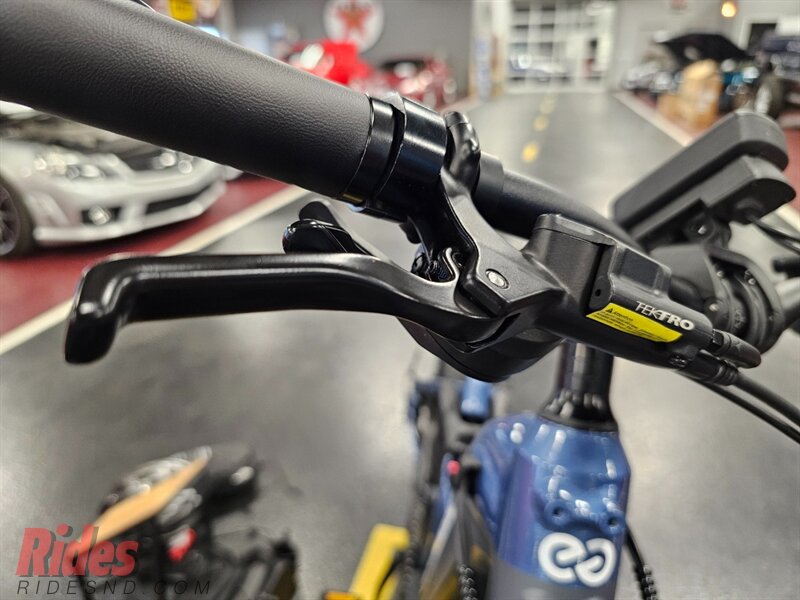

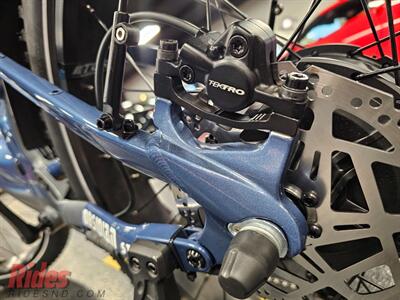

The Obsidian 2.0 is equipped with a Shimano 10-speed drivetrain, providing precise gear transitions for both high-speed cruising and steep climbs. Hydraulic disc brakes with large rotors deliver consistent stopping power under load, ensuring maximum control and safety across all terrains and weather conditions.

Suspension & Frame

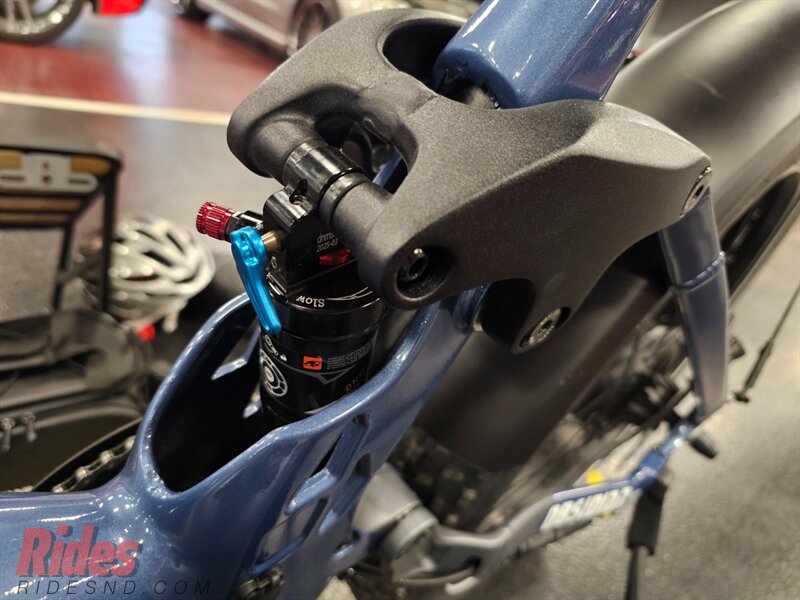

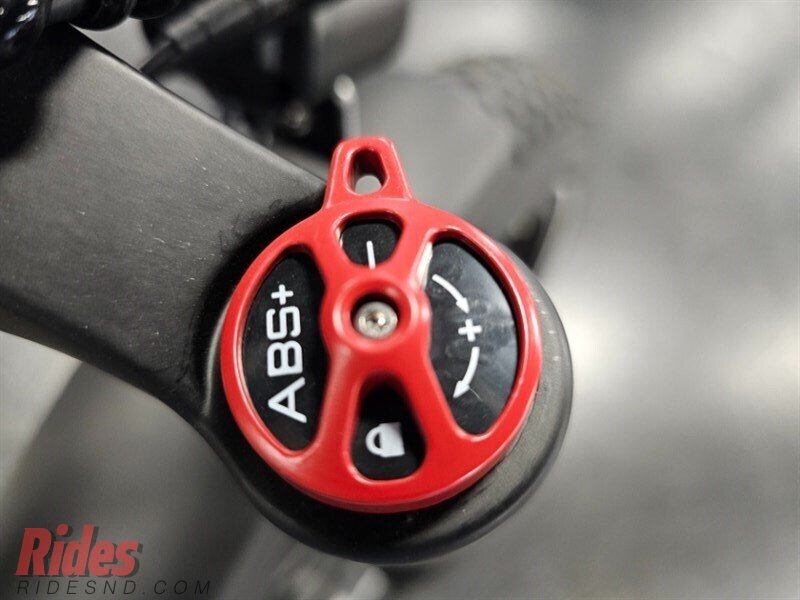

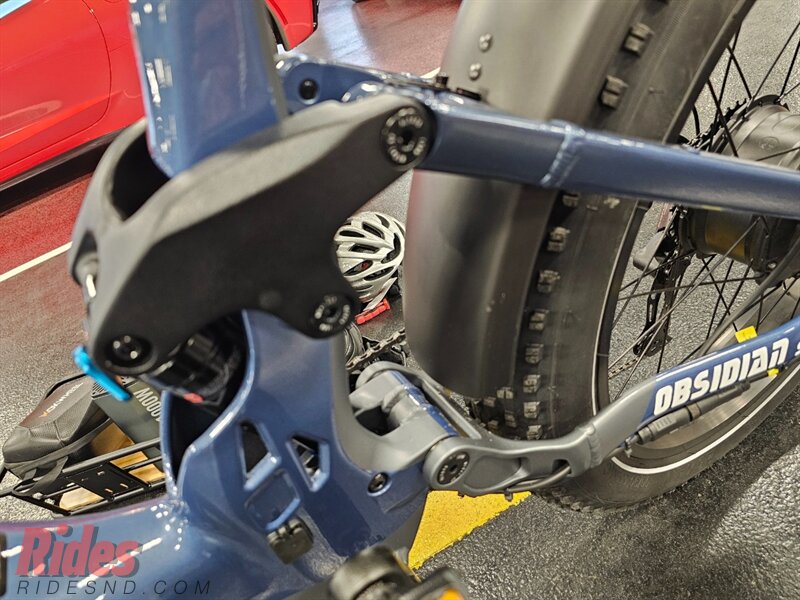

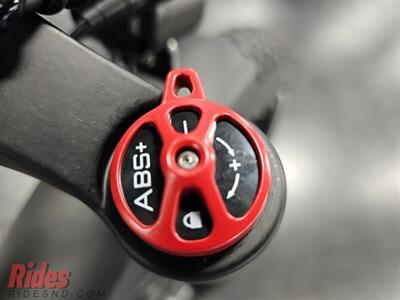

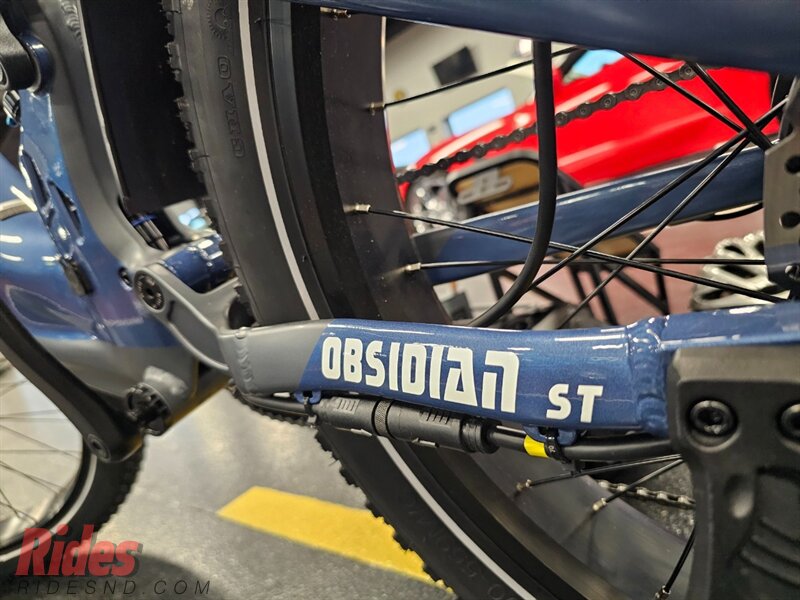

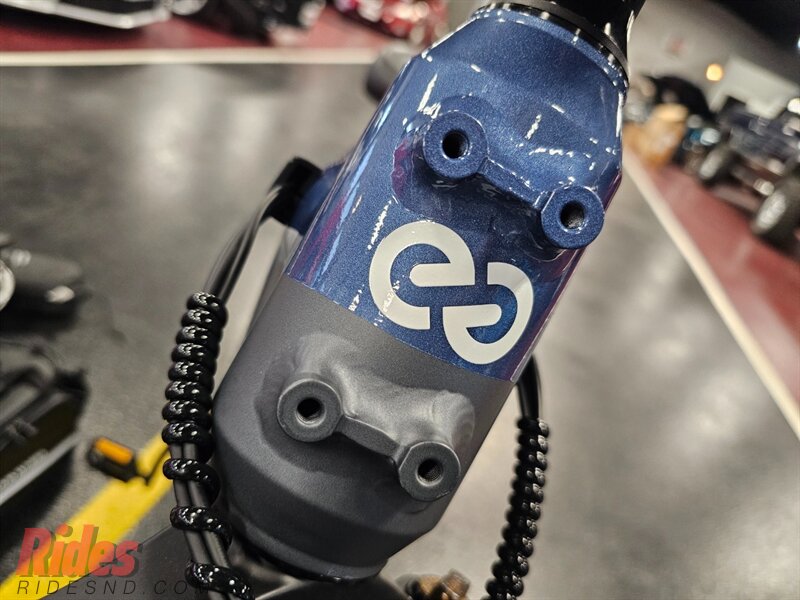

Featuring dual suspension, the Obsidian 2.0 uses an adjustable front air fork (130 mm travel) paired with a rear shock for complete damping performance over rough terrain. The 6061-T6 aircraft-grade aluminum alloy frame offers exceptional strength while maintaining a balanced ride feel. The integrated cable routing system reduces maintenance and enhances the bike’s clean, modern appearance.

Wheels & Tires

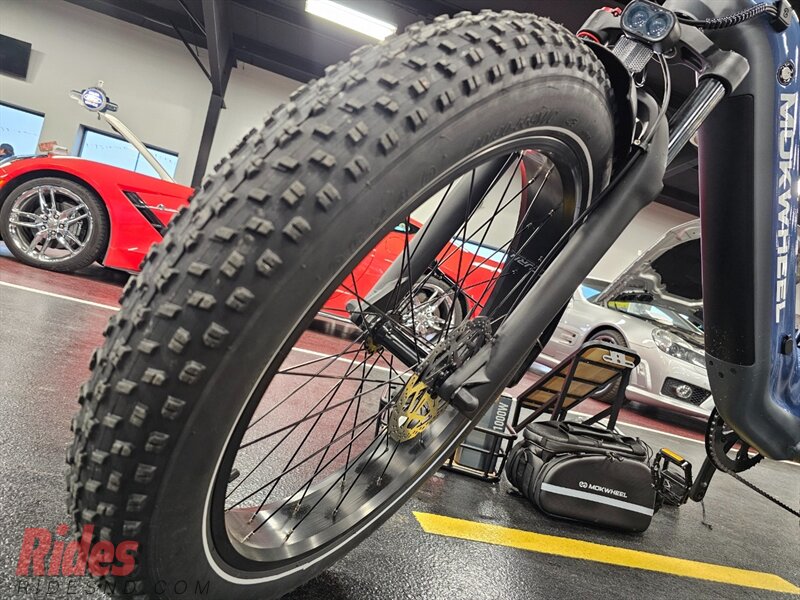

Outfitted with 26” × 4.0” puncture-resistant fat tires, the Obsidian 2.0 provides exceptional traction and stability on dirt, gravel, sand, and snow. Heavy-duty rims and stainless-steel spokes support a 400-lb payload capacity, making this bike ideal for riders carrying gear or traveling long distances.

Display & Electronics

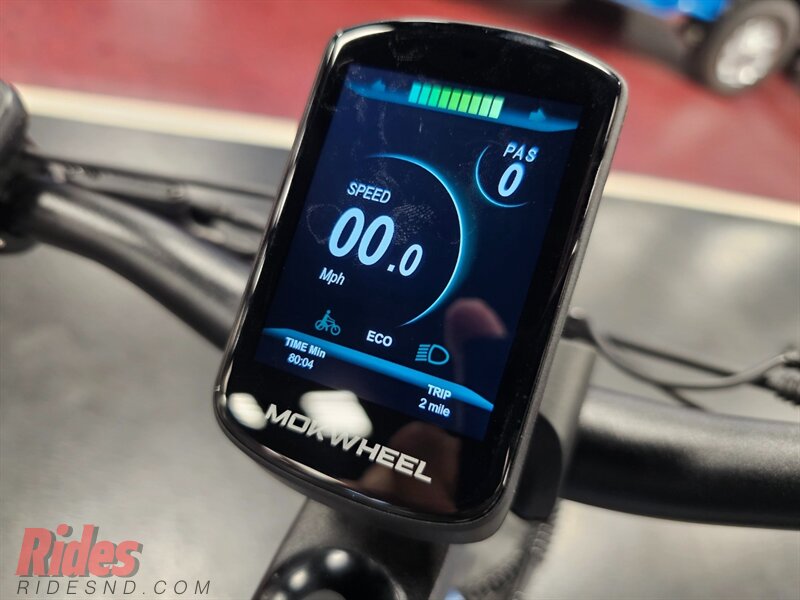

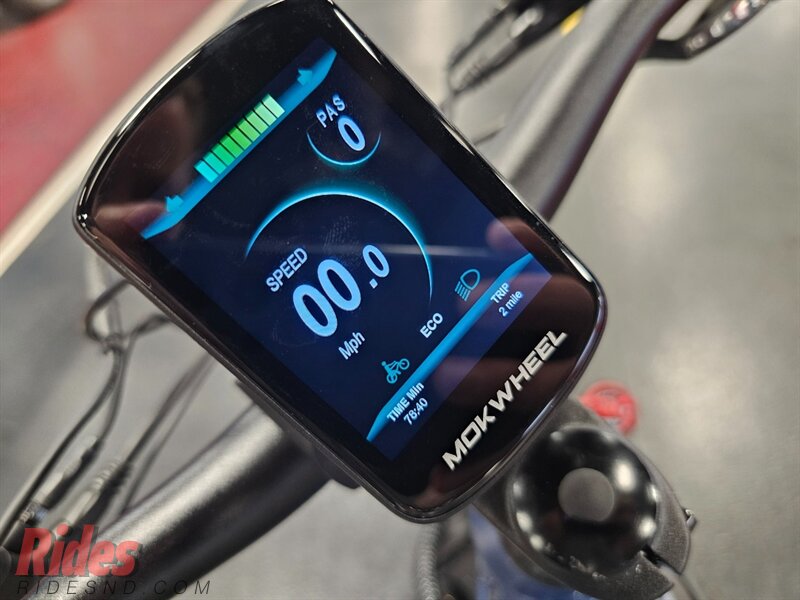

A detachable full-color LCD display provides real-time metrics including speed, distance, trip data, battery level, and assist mode. The system also features integrated LED lighting for improved visibility and rider safety during low-light conditions.


Technical Specifications

Motor: 1300 W peak brushless rear hub motor
?Torque: 105 Nm

Battery: 48V 19.6Ah (940 Wh) UL 2271-certified lithium-ion

Range: Up to 80 miles per charge

Drivetrain: Shimano 10-speed

Brakes: Hydraulic disc, 180 mm rotors

Suspension: Front 130 mm adjustable air fork + rear shock

Frame: 6061-T6 aluminum alloy

Tires: 26" × 4.0" all-terrain fat tires

Display: Detachable color LCD with USB port

Payload Capacity: 400 lbs

Weight: Approx. 77 lbs

Brakes TEKTRO Hydraulic Disc Brakes
Tires 26"x4.0" Puncture Resistant Fat Tire
Display Detachable High-Definition Display
Gearing Shimano 10-Speed
Derailleur 10 Speed Shimano Rear Derailleur
Chain KMC Stainless Chain

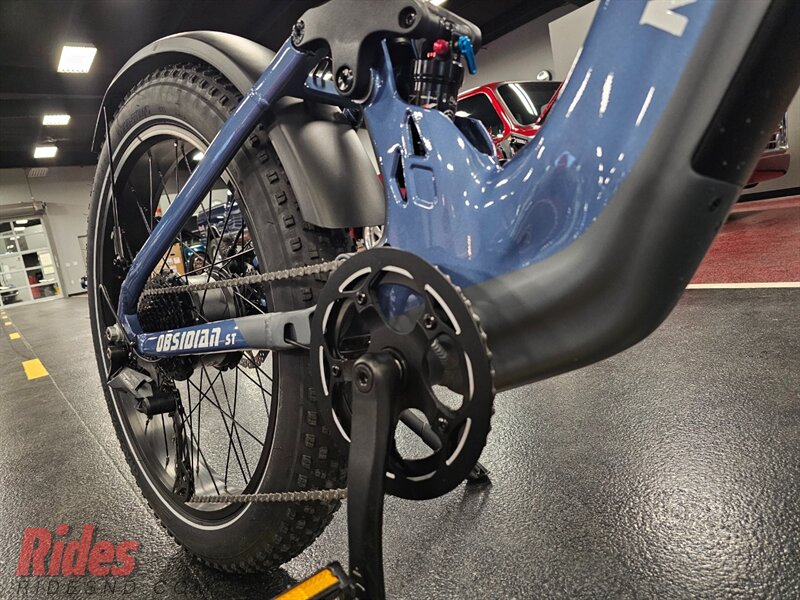

Crank Set 46T Aluminum Alloy Crankset
Front Fork 130mm Adjustable Suspension
Frame6061 Aluminum Alloy with Internal Battery

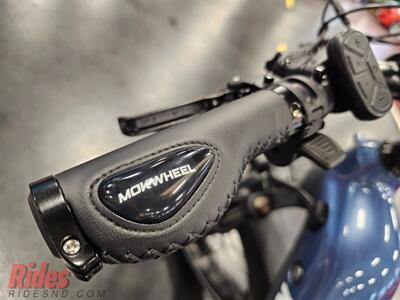

Throttle Thumb Throttle
Handlebar Aluminum Alloy, 680mm
Kickstand 6061 Aluminum Kickstand
Rims Aluminum Alloy

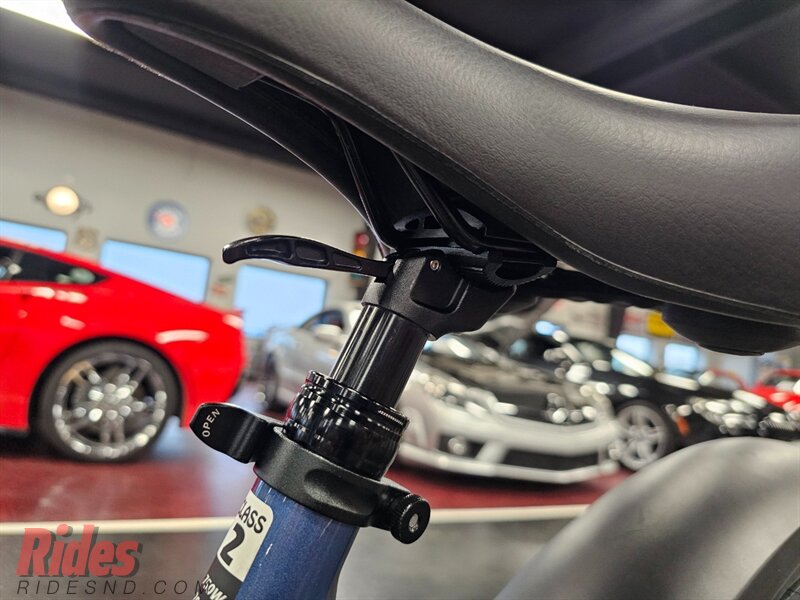

Saddle Hydraulic Two-Stage Adjustable Seat
Spokes Front 45#x12Gx248mm and Rear 45#×12G×216mm

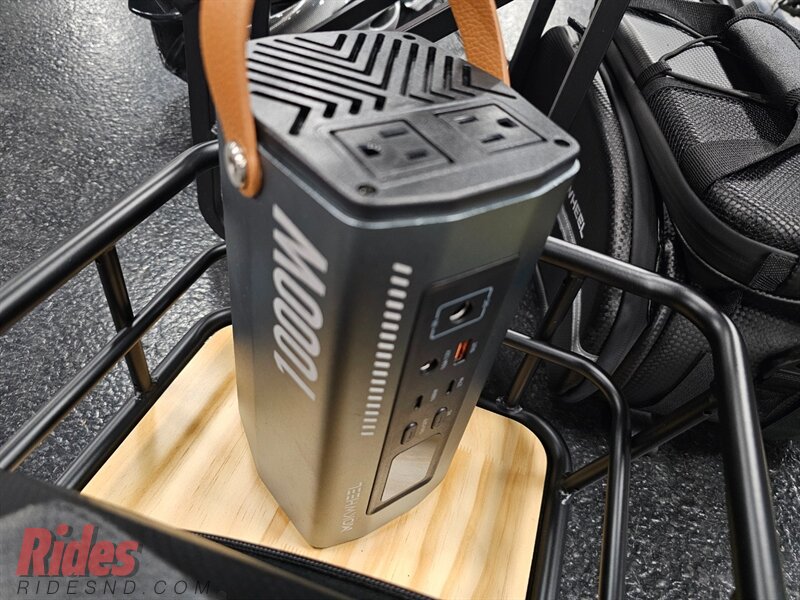

Connectivity & Output Options

Engineered for versatility, the inverter includes multiple power ports to handle a wide range of devices:

2 × AC Outlets (110 V, 60 Hz) – for standard household plugs

1 × USB-C (PD 100 W) – fast charging for laptops, tablets, and phones

1 × USB-A (QC 18 W) – compatible with most standard USB devices

1 × DC5521 Port (12 V / 10 A) – ideal for portable coolers, routers, and low-voltage gear

With multiple output types available simultaneously, the Mokwheel Inverter provides on-demand energy wherever you need it most.


Design & Build Quality

Constructed from CNC-machined aluminum alloy, the inverter offers exceptional durability, corrosion resistance, and heat dissipation. Compact and portable, it weighs only 1.6 kg (3.5 lbs) and measures 214 × 116.5 × 109.6 mm, making it easy to store or mount in your gear setup. The built-in LED status indicators display system activity, battery level, and fault alerts for quick reference during operation.
